    Waterproof Dual Unit Absolute Encoder 16 Channel For Vehicle DC5V 337.5°

    Ask Lasest Price
    Brand Name : ANYO
    Model Number : ED10401O
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 30000 per day
    Delivery Time : 8-10 work days
    • Product Details
    • Company Profile

    Waterproof Dual Unit Absolute Encoder 16 Channel For Vehicle DC5V 337.5°

    10mm Dual Unit Absolute Encoder 16 Channel For Vehicle DC5V 337.5°


    Feature:


    Waterproof encode switch is widely used in walkie-talkies. At present, the waterproof grade of products can reach IP67, and all products have waterproof function detected by professional waterproof testing instruments. The products have high reliability.


    Electrical specifications:


    ItemsSpecificationsCondition
    Voltage ratingDC 5V
    Current rating1mACommon terminal shall be withstanded at 2 mA (with load)
    Max. operating current2mA
    Contact resistance500mΩ Max.After being rotated several times,measured by voltage decreasing method at 5V DC 1A of less than 2mv 1k HZ
    Insulation resistance100MΩ Min.At DC 250V
    Dielectric strengthNo subversion on insulating materialAC300V (50~60Hz) for 1 minute
    Output signalRefer to attached drawing
    Stopper strength3Kgf.cm

    Mechanical Characteristics:


    ItemsSpecificationsCondition
    Rotational torque (gf.cm)100~400gf.cm
    Push-pull strengthPush/pull 10Kgf10Kgf.cm for 15 seconds
    Total rotational angle337.5°
    Number of detent16Rotate a week's positioning number

    Durability:


    ItemsSpecificationsCondition
    Rotational lifeEncoder shall be operated 10,000 cycles without load10~15 times per minute
    Waterproof levelIP67
    Operating temperature-20℃~60℃

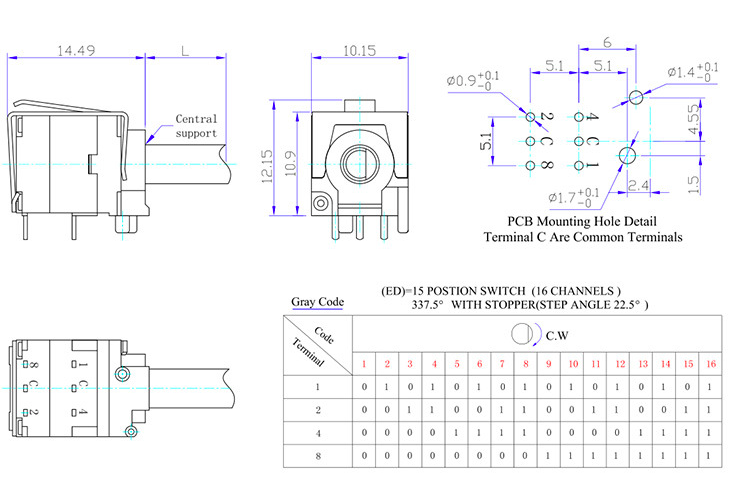

    Dimension:
