    High Accuracy 23mm Absolute Rotary Encoder Dual Unit DC 5V For Communication

    Ask Lasest Price
    Brand Name : ANYO
    Model Number : ED231010
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 30000 per day
    Delivery Time : 8-10 work days
    • Product Details
    • Company Profile

    High Accuracy 23mm Absolute Rotary Encoder Dual Unit DC 5V For Communication

    23mm Rotary Absolute Encoder Dual Unit DC 5V For Communication


    Feature:


    Select high-quality metal materials for shell, moisture-proof, moisture-proof; do not affect the operation of encoder

    Compact, easy to use, easy to replace, insulation resistance, stable contact, and can maintain output continuously and effectively

    High accuracy, longer life

    Widely used in household appliances, automobiles, communications, toys, medical equipment and other products


    Electrical specifications:


    ItemsSpecificationCondition
    RatingDC 12V, 0.4A on load
    Contact resistance1Ω MAX(Including resistance of circuit)After being rotated several times,measured by voltage decreasing method at 5V DC 1A of less than 2mv 1k HZ
    Insulation resistance100MΩ min.At DC 100V
    Dielectric strengthNo subversion on insulating materialAC 250V (50~60Hz) 1 minute
    Output signalRefer to attached drawing

    Mechanical Characteristics:


    ItemsSpecificationCondition
    Rotational torque(gf.cm)0.9±0.5Kgf.cmAfter 20000 cycles
    Push-pull strengthPush/Pull 10Kgf10Kgf.cm for 15 seconds
    Total rotational angle360°
    Angle of throw9°×40 channel

    Durability:


    ItemsSpecificationsCondition
    Rotational lifeEncoder shall be operated 20,000 cycles without load16~20 times per minute
    Operating temperature-30℃~70℃

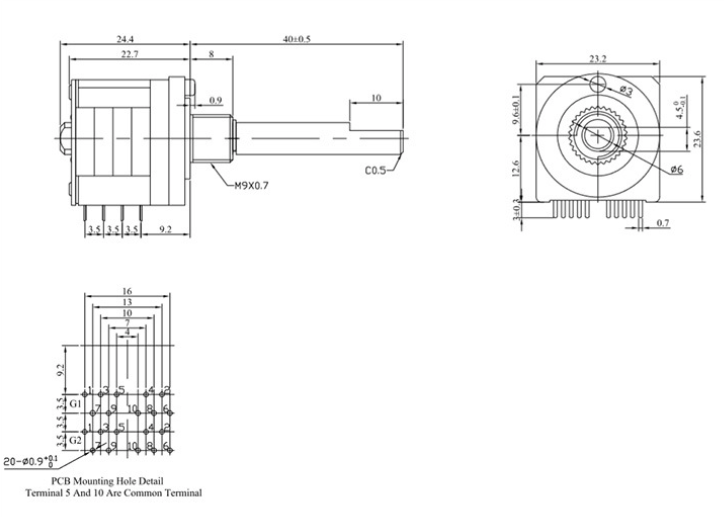

    Dimension:
