    Gear Switch Carbon Composition Potentiometer 10mm Band Switch DC16V 0.1A

    Ask Lasest Price
    Brand Name : ANYO
    Model Number : RS1010-16
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 30000 per day
    Delivery Time : 8-10 work days
    • Product Details
    • Company Profile

    Gear Switch Carbon Composition Potentiometer 10mm Band Switch DC16V 0.1A

    10mm Band Switch DC16V 0.1A With Total Rotational Angle 30±3°


    Application:


    widely used in automotive power amplifier, audio, instrument and equipment, household appliances, communication intercom, electronic toys, tuning and dimming governor and other related products.


    Technical specifications:


    Electrical characteristic
    Rated powerDC16V 0.1A
    Insulation resistace100MΩ at DC100V
    Withstand voltageFor 1 minute at : AC 100V
    Comtact resistance50mΩ max.
    Mechanical characteristics
    Step angle30±3°
    Rotation torque200±100gf.cm
    Pull-push strength/
    Rotational stop-end torque5kgf.cm
    Resistance to soldering heat260±5℃ at 3 seconds
    Used temperature range-10℃~70℃
    Durability
    Rotation life10000 cycles min.

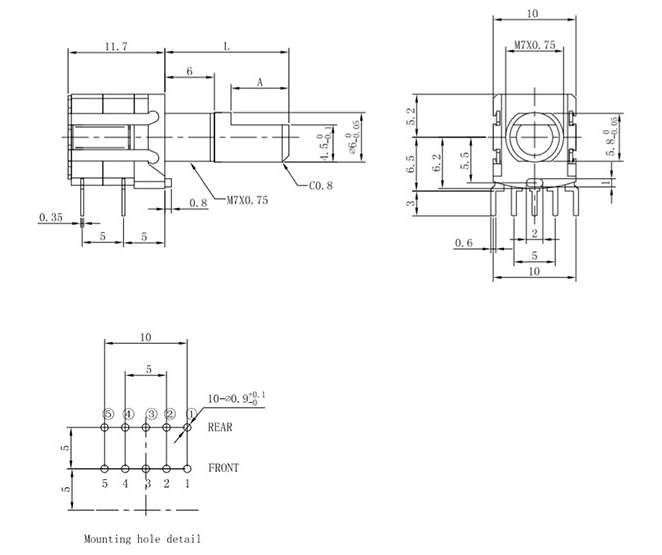

    Dimension:
