    Single Unit Carbon Composition Potentiometer For Household Appliances

    Ask Lasest Price
    Brand Name : ANYO
    Model Number : R09710NO
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 30000 per day
    Delivery Time : 8-10 work days
    • Product Details
    • Company Profile

    Single Unit Carbon Composition Potentiometer For Household Appliances

    Precise 9.5mm Plastic-Coated Metal Shaft Potentiometer Single Unit


    Electrical specifications:


    ItemsSpecification
    End resistance50Ω max.
    Ratings power0.05W
    Maximum operating voltageB Taper :10V AC or 50V AC,Other taper : 5V DC or 25V AC
    Insulation resistance

    100MΩ min. at DC 250V

    Dielectric strength1 minute at 300V AC
    Slider noise100mV max (before reflow and cycle test)
    Output signalRefer to attached drawing

    Mechanical Characteristics:


    ItemsSpecification
    Rotational torque(gf.cm)

    50~250gf.cm at 20℃

    500gf.cm max. at -30℃

    Push-pull strength10Kgf min
    Total rotational angle300°
    Stopper strength3Kgf.cm min

    Durability:


    ItemsSpecification
    Rotational lifePermissible resistance change after 15,000±200 cycles on 600 r.p.h .without load ±15% max.
    Operating temperature-40℃~85℃

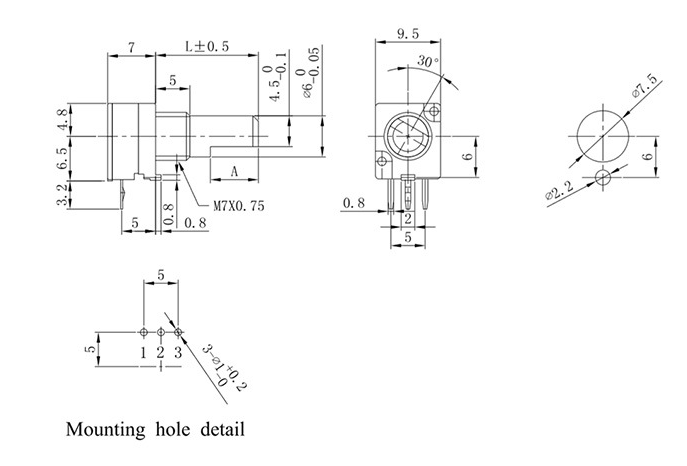

    Dimension:
