    PTK10 7 Pin Potentiometer , Rotary Switch Potentiometer For Industrial Electronics

    7-pin PTK10 carbon composition rotary type potentiometer, rotary switch


    Description:


    A potentiometer can refer to two types of devices: an instrument used to measure electromotive force, or an electronic component with an adjustable resistance. In the latter case, a potentiometer is generally a resistor with a sliding contact that is mounted on a rotating shaft. This device serves as a voltage divider that allows the user to alter the level of resistance offered to the current flowing through it, which means that the output voltage can be modified to anywhere between the maximum level of incoming current and zero volts.


    Carbon Potentiometer is an electronic component classified as variable resistor. Carbon Potentiometer is used as voltage divider to provide variable output voltage. Carbon Potentiometers uses carbon as resistive element. There are also different types of Potentiometers like Wire Wound type and ceramic type using different materials on resistive element. Carbon Potentiometer can be classified into logarithmic type and linear type depending on the mode of operations. Carbon Potentiometers are of many types and sizes depending on resistance value, power rating and type of mounting.
    Panel mounted type Carbon Potentiometer are widely used for volume and tone control in consumer and entertainment electronics. PCB mount type is used as function controller, measuring and testing equipment, medical electronics, industrial electronics etc. Carbon Potentiometer is available with and without switches. There are also many varieties of spindles used for carbon potentiometer depending on the materials and sizes.


    Electrical specifications


    Range of value

    100Ω≤Rn≤5MΩ

    (Decad.1.0-2.0-2.2-2.5-4.7-5.0)

    Tolerance

    100Ω≤Rn≤1MΩ ±20% ;

    1MΩ≤Rn≤5MΩ ±30%

    Max. voltage

    200 VDC(lin)

    100VDC(no lin)

    Rated power

    0.15W(lin)

    0.07W(no lin)

    Taperlin; log; alog
    Residual resistance≤5‰ Rn(3Ω min)
    Equivalent noise resistance≤3% Rn(3Ω min)
    Operating temperature-25°C~70°C

    Others:


    Rotation life: After 10,000 rotation, the changes impacted no more than ± (15% R +0.5 Ω ) rotational noise not more than 100 mv

    Terminal strength: After welding (350 °C, 3,5 seconds) , the termination of terminal contacts should be good, no loosening of.

    Soldering ability: Dip the terminals into tin tank at 260°C±5°C for 2±0.5 seconds, the soldering area should be more than 90%.


    Resistance SR code table:


    ResistanceCode
    100Ω101
    500Ω501
    1KΩ102
    2KΩ202
    3.3KΩ332
    4.7KΩ472
    5KΩ502
    10KΩ103
    20KΩ203
    22KΩ223
    47KΩ473
    50KΩ503
    100KΩ104
    200KΩ204
    250KΩ254
    500KΩ504
    1MΩ105
    2MΩ205
    2.2MΩ225

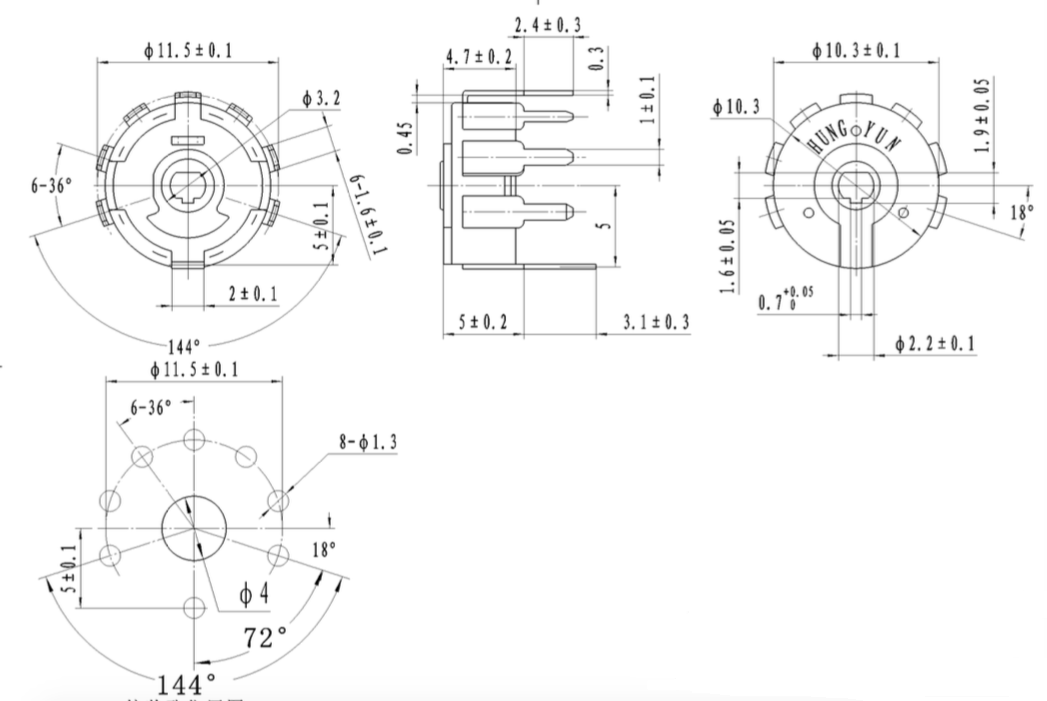

    Mounting methods:


    Rotors available:
