SPDT T90 (OMRON G8P) T type relay 30A for refrigerator compressor
Description:
A relay is an electrically operated switch. Many relays use an
electromagnet to mechanically operate a switch, but other operating
principles are also used, such as solid-state relays. Relays are
used where it is necessary to control a circuit by a low-power
signal (with complete electrical isolation between control and
controlled circuits), or where several circuits must be controlled
by one signal.
What do SPST,SPDT,DPST and DPDT mean?
SP and DP refer to single pole and double pole, ST and DT refer to
single throw and double throw.
Pole refers to the number of circuits controlled by the switch:SP
switches control only one electrical circuit. DP switches control
two independent circuits(and act like two identical switches that
are mechanically linked). Don't confuse "pole" with "terminal". The
DPST switch, for example, has four terminals, but it is a DP, not a
4P switch.
Throw refers to the extreme position of the actuator: ST switches
close a circuit at only one position. The other position of the
handle is OFF. DT switches close a circuit in the UP position, as
well as the Down position(ON-ON). A DT switch can also have a
center position(frequently ON-OFF-ON).
Single pole/throw and double pole/throw switches are by far the
most common switches, but tripe and quadruple configurations are
also available. They are commonly denoted 3PST,3PDT,4PDT, etc.
Features:
• Small size, light weight.
• Low coil power consumption, heavy contact load.
• Strong anti-shock and anti-vibration, high reliability, long life.
• PC board mounting.
Applications:
Suitable for automobile, machine, electronic equipment, air
conditioner and household appliances applications.
General data:
| Contact form | 1A(1H)-SPST NO 1B-SPST NC 1C(1Z)-SPDT |
| Insulation resistance | 100MΩMin at500VDC |
| Dielectric strength between open contacts | 1500VAC 50-60HZ(1 minute) |
| Dielectric strength between contacts and coil | 2000VAC 50-60HZ(1 minute) |
| Operate time | 15ms max. |
| Release time | 10ms max. |
| Ambient temperature | -40°C ~ +85°C |
| Shock resistance-Malfuction | 10G |
| Shock resistance-Destruction | 20G |
| Vibration resistance | 10-55Hz,1.5mm double amplitude |
| Ambient humidity | 40-85% RH |
| Weight | Approx 32g |
| Safety standard | UL TUV CQC |
Coil data (@20°C)
Rated voltage (VDC) | Coil Resistance Ω(±10%) | Max Operate Voltage (VDC) | Min Release Voltage (VDC) | Max Applied Voltage (VDC) |
| 0.93W |
| 3 | 9.7 | 2.25 | 0.15 | 3.9 |
| 5 | 26.9 | 3.75 | 0.25 | 6.5 |
| 6 | 38.8 | 4.5 | 0.3 | 7.8 |
| 9 | 87.1 | 6.75 | 0.45 | 11.7 |
| 12 | 154.9 | 9 | 0.6 | 15.6 |
| 24 | 619.4 | 18 | 1.2 | 31.2 |
| 48 | 2477.5 | 36 | 2.8 | 62.4 |
CAUTION:
1.The use of any coil voltage less than the rated coil voltage will
compromise the operation of the relay.
2.Pickup and release voltage are for test purposes only and are not
to be used as design criteria.
3.Unless otherwise stated, the rated coil voltage specified in coil
parameter tableshall be used for all tests and its application to
the relay

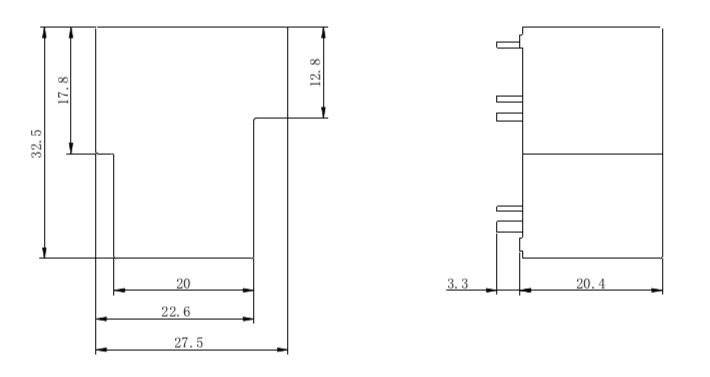

Outline dimension(mm):
PCB board layout and Wiring diagram:
