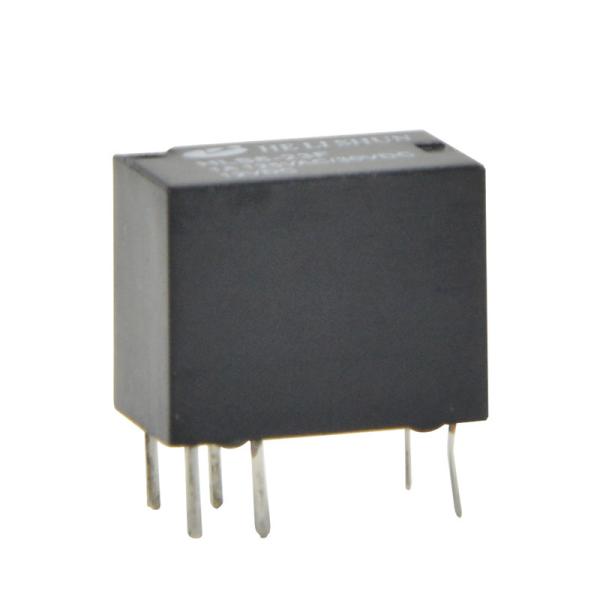

Miniature signal relay 23F(OMRON G5V-1) SPDT 2A 120VAC,
12.5*7.5*10mm
Description:
A relay is an electrically operated switch. Many relays use an
electromagnet to mechanically operate a switch, but other operating
principles are also used, such as solid-state relays. Relays are
used where it is necessary to control a circuit by a low-power
signal (with complete electrical isolation between control and
controlled circuits), or where several circuits must be controlled
by one signal.
Single Pole Double Throw (SPDT):
Such relay consists of a pair of coil pins, a common pin, a
normally open (NO) pin and a normally closed (NC) pin. When the
relay is not activated, the common pin is in contact with the NC
pin and when it is activated, the common pin will break away from
contact with the NC pin and subsequently makes contact with the NO
pin. Also, when the relay is deactivated (from activated state),
the common pin will conversely break away from contact with the NO
pin and return back in contact with the NC pin.
Features:
• Low coil power consumption
• High sensitivity.
• Small size, light weight.
• PC board mounting.
Applications:
Suitable for automation facilities, telecommunication equipment,
wireless radio remote control, sound control toys application etc.
General data:
| Contact form | 1C(1Z)-SPDT |
| Insulation resistance | 100MΩMin at500VDC |
| Dielectric strength between open contacts | 500VAC 50-60HZ(1 minute) |
| Dielectric strength between contacts and coil | 1000VAC 50-60HZ(1 minute) |
| Operate time | 5ms max. |
| Release time | 5ms max. |
| Ambient temperature | -30°C ~ +70°C |
| Shock resistance-Malfuction | 10G |
| Shock resistance-Destruction | 15G |
| Vibration resistance | 10-55Hz,1.5mm double amplitude |
| Ambient humidity | 40-85% RH |
| Weight | Approx 1.8g |
Coil data (@20°C)
Rated voltage (VDC) | Coil Resistance Ω(±10%) | Max Operate Voltage (VDC) | Min Release Voltage (VDC) | Max Applied Voltage (VDC) |
| 0.15W | 0.2W |
| 3 | 60 | 45 | 2.4 | 0.15 | 3.9 |
| 5 | 167 | 125 | 4 | 0.25 | 6.5 |
| 6 | 240 | 180 | 4.8 | 0.3 | 7.8 |
| 9 | 540 | 405 | 7.2 | 0.45 | 11.7 |
| 12 | 960 | 720 | 9.6 | 0.6 | 15.6 |
| 24 | 3840 | 2880 | 19.2 | 1.2 | 31.2 |
CAUTION:
1.The use of any coil voltage less than the rated coil voltage will
compromise the operation of the relay.
2.Pickup and release voltage are for test purposes only and are not
to be used as design criteria.
3.Unless otherwise stated, the rated coil voltage specified in coil
parameter tableshall be used for all tests and its application to
the relay
Outline dimension(mm):
PCB board layout and Wiring diagram:
