6*30mm Glass Tube Fuse

    Buy cheap 6*30mm Glass Tube Fuse from wholesalers

    Buy cheap 6*30mm Glass Tube Fuse from wholesalers
    • Buy cheap 6*30mm Glass Tube Fuse from wholesalers
    • Buy cheap 6*30mm Glass Tube Fuse from wholesalers

    6*30mm Glass Tube Fuse

    Ask Lasest Price
    Brand Name : ANYO
    Model Number : U6T
    Certification : UL, TUV
    Price : Negotiation
    Supply Ability : 1000000pcs per day
    Delivery Time : 8-10 work days
    Payment Terms : L/C, T/T
    • Product Details
    • Company Profile

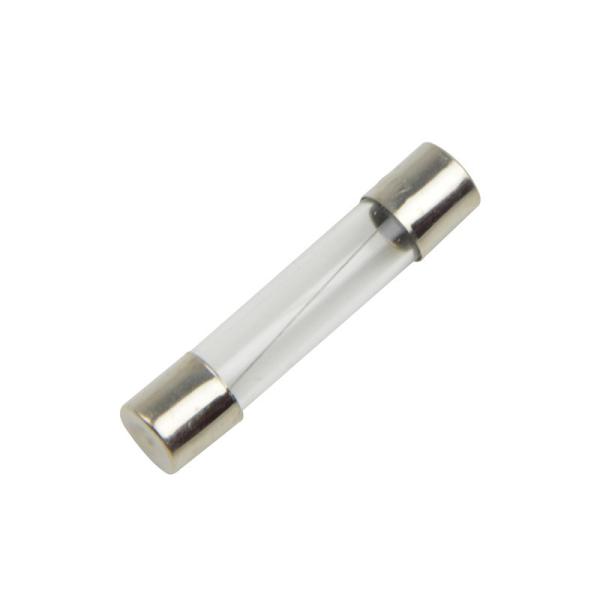

    6*30mm Glass Tube Fuse

    Slow blow glass tube fuse 6*30mm for car stereo audio, 100mA~30A


    Description:


    Glass tube fuse works by breaking the circuit when rated current passes through it. When the current passing through the fuse exceeds the rated current, the thin wire melts and breaks the circuit.


    There are two basic types of fuses available for appliances and consumer electronics: quick blow or time-delay. Any replacement fuse must match the one it’s replacing. In general, quick blow fuses are a single strand of wire or strip of metal. Time-delay fuses usually have a coiled wire, a thick element wrapped in wire, or a spring. Most electronic fuses will have the voltage and amp rating stamped on the end cap. The type of fuse can generally be visually identified. Also, owner’s manuals will have the correct replacement fuse generically identified. For example: “Use a 2 amp, time-delay, 250 volt fuse.”


    Glass tube fuses are often used to protect appliances and consumer electronics. As electronic equipment becomes smaller, the circuits and components become more delicate and easily damaged. Fuses are the preferred method of protection due to their accuracy, small size and reliability. Fuses are available in a wide variety of amp ratings to provide precise protection. Generally, two sizes of user-replaceable fuses are found: the 1/4” x 11/4” and 5 x 20mm. Each is available in a variety of volt and amp ratings.


    Electrical Characteristics:


    % of current ratingOpening time
    100%4 hours Min.
    135%1 hour Max.
    200%5 seconds Max.

    Rated currentRated voltage
    100mA125V/250V
    125mA125V/250V
    150mA125V/250V
    160mA125V/250V
    200mA125V/250V
    250mA125V/250V
    300mA125V/250V
    315mA125V/250V
    350mA125V/250V
    400mA125V/250V
    500mA125V/250V
    600mA125V/250V
    700mA125V/250V
    750mA125V/250V
    800mA125V/250V
    1A125V/250V
    1.2A125V/250V
    1.25A125V/250V
    1.5A125V/250V
    1.6A125V/250V
    1.8A125V/250V
    2A125V/250V
    2.5A125V/250V
    3A125V/250V
    3.15A125V/250V
    3.5A125V/250V
    4A125V/250V
    5A125V/250V
    6A125V/250V
    6.3A125V/250V
    7A125V/250V
    8A125V/250V
    10A125V/250V
    12A125V/250V
    15A125V/250V
    20A125V/250V
    25A125V/250V
    30A125V/250V

    All fuses have a voltage rating. To maintain safety, this voltage rating should not be exceeded in application, although it is acceptable to use a higher rated fuse in a lower voltage application. For example: A fuse rated for 125 volts is appropriate in household (110V) or automotive (12V), while a fuse rated for 32 volts is appropriate for automotive (12V), but not for household (125V). Always replace a fuse with one of the same or higher voltage rating.

    Dimension:(mm)

    Quality 6*30mm Glass Tube Fuse for sale
