Metallized Polypropylene Film Capacitor Class X2

Metallized polypropylene film capacitor, interference suppressors class X2

Description:

Metalized Polypropylene Film Capacitor are capacitors which use a thin plastic film as the dielectric. This film is made extremely thin using a sophisticated film drawing process. Once the film is manufactured, it may be metallized or left untreated, depending on the needed properties of the capacitor. Electrodes are then added and the assembly is mounted into a case which protects it from environmental factors. They are used in many applications because of their stability, low inductance and low cost. There are many types of film capacitors, including polyester film, metallized film, polypropylene film, PTFE film and polystyrene film. The core difference between these capacitor types is the material used as the dielectric, and the proper dielectric must be chosen according to the application.

Features:

• Self-healing properties.
• Flame-retardant plastic case and epoxy resin.
• High moisture-resistance.
• Good solder ability.

Application:

• LineByPass and Antenna coupling

• AcrossTheline,spark killer
• FMI filter
• Switching power supply

Capacitance code:

103=10,000pf=0.01μF

104=100,000pf=0.1μF

105=1,000,000pf=1μF

223=22,000pf=0.022μF

474=470,000pf=0.47μF

Symbols of capacitance tolerance:

F=±1%

G=±2%

H=±3%

J=±5%

K=±10%

M=±20%

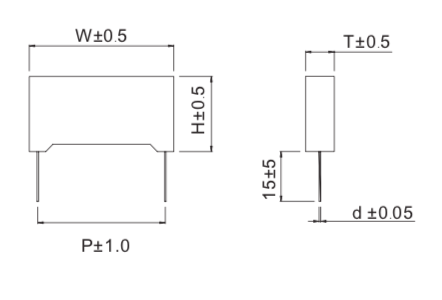

Dimension:

Cap. (uF)

Size unit:m/m

Symbol	μF	W	H	T	P	d
102	0.001	13	9	4	10	0.6
122	0.0012	13	9	4	10	0.6
152	0.0015	13	9	4	10	0.6
182	0.0018	13	9	4	10	0.6
222	0.0022	13	9	4	10	0.6
272	0.0027	13	9	4	10	0.6
332	0.0033	13	11	5	10	0.6
392	0.0039	13	11	5	10	0.6
472	0.0047	13	11	5	10	0.6
562	0.0056	13	11	5	10	0.6
682	0.0068	13	11	5	10	0.6
822	0.0082	13	11	5	10	0.6
103	0.01	13	9	4	10	0.6
103	0.01	13	11	5	10	0.6
123	0.012	13	11	5	10	0.6
153	0.015	13	11	5	10	0.6
183	0.018	13	11	5	10	0.6
223	0.022	13	11	5	10	0.6
223	0.022	18	10	5	15	0.6
273	0.027	18	12	6	10	0.6
333	0.033	18	12	6	10	0.6
333	0.033	18	10	5	15	0.6
393	0.039	18	10	5	15	0.6
473	0.047	13	12	6	10	0.6
473	0.047	18	10	5	15	0.6
563	0.056	18	12	6	15	0.6
683	0.068	18	12	6	15	0.6
823	0.082	18	12	6	15	0.6
104	0.1	13	12	6	10	0.6
104	0.1	18	13.5	7.5	15	0.6
104	0.1	18	13.5	7.5	15	0.8
124	0.12	18	13.5	7.5	15	0.8
154	0.15	18	12	6	15	0.8
154	0.15	18	13.5	7.5	15	0.8
154	0.15	18	14.5	8.5	15	0.8
154	0.15	26.5	15	6	22.5	0.8
184	0.18	18	14.5	8.5	15	0.8
224	0.22	18	12	6	15	0.8
224	0.22	18	14.5	8.5	15	0.8
224	0.22	26.5	15	6	22.5	0.8
224	0.22	26.5	16.5	7	22.5	0.8
274	0.27	26.5	17	8.5	22.5	0.8
334	0.33	18	16	10	15	0.8
334	0.33	26.5	16.5	7	22.5	0.8
334	0.33	26.5	17	8.5	22.5	0.8
394	0.39	26.5	18	10	22.5	0.8
474	0.47	18	16	10	15	0.8
474	0.47	18	18	10	15	0.8
474	0.47	26.5	17	8.5	22.5	0.8
474	0.47	26.5	18	10	22.5	0.8
474	0.47	32	20	11	27.5	0.8
564	0.56	32	20	11	27.5	0.8
684	0.68	26.5	18	10	22.5	0.8
684	0.68	32	20	11	27.5	0.8
824	0.82	32	22	13	27.5	0.8
105	1	26	21.5	12	22.5	0.8
105	1	32	20	11	27.5	0.8
105	1	32	22	13	27.5	0.8
125	1.2	32	30	15	27.5	0.8
155	1.5	32	30	15	27.5	0.8
185	1.8	31	31	18	27.5	0.8
225	2.2	32	30	15	27.5	0.8
225	2.2	31	31	18	27.5	0.8
225	2.2	41	32.5	17.5	37.5	1
