    16mm Din Aviation Wire Connectors

    Ask Lasest Price
    Brand Name : ANYO
    Model Number : GX16
    Price : Negotiation
    Supply Ability : 100000 per day
    Delivery Time : 8-10 work days
    Payment Terms : L/C, T/T
    • Product Details
    • Company Profile

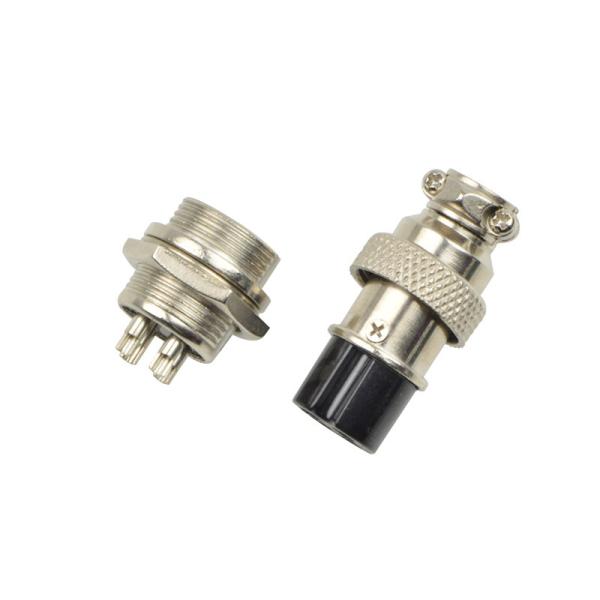

    16mm Din Aviation Wire Connectors

    Panel mount 16mm Din female / male aviation wire connector plug


    Description:


    Micro connector or connector also called aviation. This is a round connector, metal and robust. The appearances of the products has two kinds, plug-type and thread type. Used in the installation of the panel, small, exquisite and sensitive. It's nickel-plated and easy to plug-in. Ideal for performing their own installations and connections with total reliability and durability. The connection is stable because it has threads for mounting.

    Circular connector is a kind of electrical connector with cylindrical basic structure and round junction surface. Cylindrical structure has good sturdiness, and has higher strength to weight ratio relative to any other shapes. It is widely used in the aerospace industry, also known as aviation connector.

    These GX16 aviation connectors are sturdy, beefy, and lockable. The plating allows them to be soldered easily, and they are well insulated. Their specs allow them to carry more than enough current to be viable for wiring high output power supplies for PCs, and wiring is simple and versatile.


    Features:


    Sold as a set (1 male and 1 female plug with included nuts)

    For DIY enthusiasts. No instructions provided.

    Requires 16mm mounting hole.


    Electrical characteristics:


    Rated current

    2~4P: 7A
    5P: 5A

    6~10P: 4A

    Rated voltage125V
    Operation voltage200VAC
    Withstanding voltage1500VAC
    Insulation resistance2000MΩ DC 500V
    Contact resistance10mΩ DC1A
    Solder cup mouth diameter

    2~4P: 1.6mm

    5P: 1.2mm

    6~10P: 0.9mm

    Solder diameter

    2~4P: 2.45mm

    5P: 2mm

    6~10P: 1.15mm


    Application:


    Subminiature aviation linkers are widely used for the Hi-Tech trade, such as landing gear, avionics, cabin equipment, engine control system, and others


    Dimension:
