25.4mm red LED single digital display, 7 segment display common anode

Description:

Seven-segment display is a form of electronic display device for displaying decimal numerals that is an alternative to the more complex dot matrix displays.

The 7-segment display consists of seven LEDs (hence its name) arranged in a rectangular fashion. Each of the seven LEDs is called a segment because when illuminated the segment forms part of a numerical digit (both Decimal and Hex) to be displayed.

Each one of the seven LEDs in the display is given a positional segment with one of its connection pins being brought straight out of the rectangular plastic package. These individually LED pins are labelled from a through to g representing each individual LED. The other LED pins are connected together and wired to form a common pin.

So by forward biasing the appropriate pins of the LED segments in a particular order, some segments will be light and others will be dark allowing the desired character pattern of the number to be generated on the display. This then allows us to display each of the ten decimal digits 0 through to 9 on the same 7-segment display.

Application:

Seven-segment displays are widely used in digital clocks, electronic meters, basic calculators, and other electronic devices that display numerical information

Features:

• 25.4mm (1.0") LED single digital display series.

• Standard brightness

• Low current operation

• Excellent character apperance

• Easy mounting on PCB or sockets

Absolute maximum ratings(Ta=25℃)

Color code & chip characteristics: (test condition: IF=20mA)

Surface / Lens color:

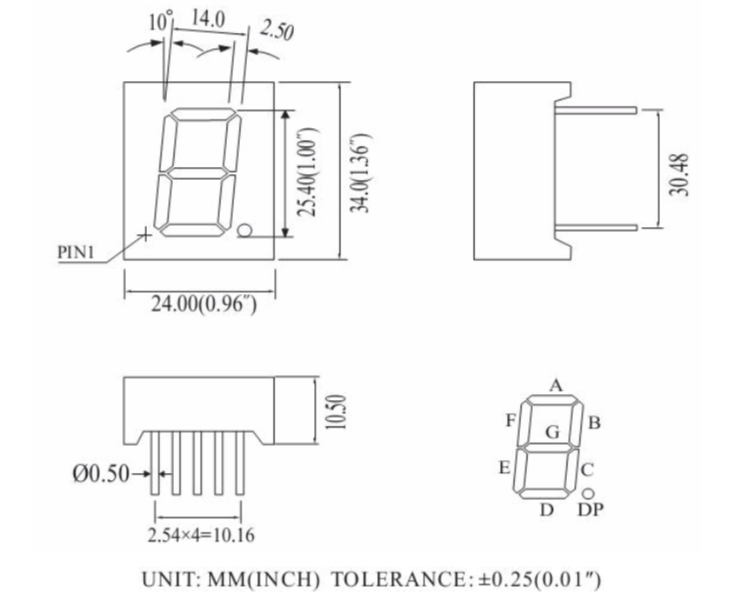

Dimension: (mm)
