SMD Multilayer Ceramic Capacitor

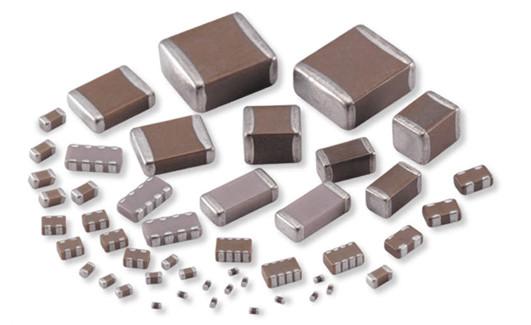

SMD multilayer ceramic capacitor (MLCC) with size 0402, 0603, 0805, 1206

Description:

An MLCC consists of a number of individual capacitors stacked together in parallel and contacted via the terminal surfaces. The starting material for all MLCC chips is a mixture of finely ground granules of paraelectric or ferroelectric raw materials, modified by accurately determined additives.

Features:

• Stringent dimensional tolerance allow highly reliable, highly speed automatic chip placement on PCBs
• Terminations are plated with Ni and solder, suited to reflow soldering.
• High insulation resistance and high reliability

• These capacitors have temperature characteristics ranging from COG to Y5V, applied to general electronic equipment, and instrument panel house electronic appliance.

Capacitor selection:

NPO(COG)	Ultra stable Class I dielectric, with predictable change of electrical properties on temperature, voltage, frequence and time. Used in circuits requiring stable performance.
X7R	Stable Class II dielectric, with predictable change of properties with temperature voltage, frequency discriminating elements. This dielelctric is ferroelectric and offers higher capacitance ranges than Class I
Y5V(Z5U)	General purpose Class II dielectric with highest dielectric constant and greater variation of properties with temperature and test conditions. Very high capacitance per unit volume and suited for application as well as filtering, transient suppression blocking, and charge stronge application.

General specification:

	COG(NPO)	X7R	Y5V(Z5U)
Capacitance range	0.2pF~10nF	100pF~4.7μF	1000pF~10μF
Capacitance tolerance	Preferred ±5%, ±10%. For values≤10pF, Preferred tolerance is ±5%pF, also ±0.25pF available	Preferred ±10%, ±20%	+80/~20%
Operating temperature range	-55℃~125℃	-55℃~125℃	-30℃~85℃
Temperature characteristic	0±30ppm℃	Within ±15%	Within +22/-82%
Rated voltage	25V,50V,100V,200V	6.3V,10V,16V,25V,50V,100V	10V,16V,25V,50V
Dissipation factor and "Q"	CR≥30pF, Q≥1000 CR<30pF, Q≥400+20	For 6.3V: DF≤5.0%; For 16V and 10V: DF≤3.5% For 25V min.: DF≤2.5%	For 10V: 12.5% max; For 16V 9.0% max For 25V min.: 5.0% max.
Insulation resistance	more than 10GΩ	10GΩ min. or 500ΩF min. whichever is less	10GΩ min. or 500ΩF min. whichever is less
Dielectric withstanding voltage	250% rated voltage	250% rated voltage	250% rated voltage
Test voltage	250% rated voltage	1±0.2Vrms	1±0.2Vrms
Test frequency	For values≥1000pF: 1KHz For values≤1000pF: 1MHz1	1KHz	1KHz

Dimension, capacitance, voltage table:

Size	Dimension(mm)					Voltage	Capacitance
Size	L	W	T	e	g min	Voltage	COG(NPO)	X7R	Y5V(Z5U)
0402	1.0±0.05	0.5±0.05	0.5±0.05	0.15~0.3	0.4	10V		100pF~0.1μF	1.0nF~0.22μF
						16V		100pF~47nF	1.0nF~0.1μF
						25V	0.2pF~100pF	100pF~22nF	1.0nF~22nF
						50V		100pF~22nF	1.0nF~10nF
						100V
						200V
0603	1.6±0.1	0.8±0.1	0.8±0.1	0.2～0.5	0.5	10V		100pF~0.22μF	2.2nF~1.0μF
						16V		100pF~0.1μF	2.2nF~0.33μF
						25V	0.2pF~1.0nF	100pF~47nF	2.2nF~0.22μF
						50V	0.2pF~1.0nF	100pF~15nF	2.2nF~56nF
						100V	0.2pF~300pF	100pF~47nF
						200V
0805	2.0±0.1	1.25±0.1	0.6±0.1	0.2~0.7	0.7	10V		1.0nF~2.2μF	10nF~4.7μF
			0.6±0.1			16V		100pF~0.47μF	10nF~2.2μF
			0.85±0.1			25V	0.5pF~4.7nF	100pF~0.22μF	10nF~1.0μF
			1.25±0.1			50V	0.5pF~2.2nF	100pF~0.1μF	10nF~0.33μF
						100V	0.5pF~1.0nF	100pF~22nF
						200V	0.5pF~470pF
1206	3.2±0.2	1.6±0.2	0.6±0.1	0.2~0.7	0.7	10V		1.0nF~4.7μF	10nF~10μF
			0.6±0.1			16V		1.0nF~1.0μF	10nF~4.7μF
			0.85±0.1			25V	0.5pF~10nF	1.0nF~1.0μF	10nF~2.2μF
			0.85±0.1			50V	0.5pF~4.7nF	1.0nF~2.2μF	10nF~1.0μF
			1.15±0.1			100V	0.5pF~2.2nF	1.0nF~0.1μF
			0.6±0.2			200V	0.5pF~1.0nF

Packing:

1. Tape packing

Paper tape: Standard taping (8mm paper width) suitable to 0603,0805, 4Kpcs/reel, to 0402, 10Kpcs/reel.

Plastic tape: Suitable for 0805, 1206 sizes for chip thickness over 0.95mm, 4Kpcs/reel or 3Kpcs/reel are available.

2. Dimensions of packing paper:

Type	A	B	C	D	T
0402	0.65±0.10	1.15±0.10	2.0±0.05	2.0±0.05	0.8 max
0603	1.05±0.10	1.85±0.10	4.0±0.10	2.0±0.10	1.1 max
0805	1.55±0.15	2.3±0.15	4.0±0.10	2.0±0.10	1.1 max
1206	1.95±0.15	3.5±0.15	4.0±0.10	2.0±0.10	1,1 max
