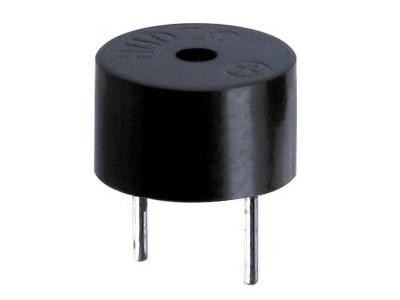

DC type micro magnetic buzzer with oscillator circuit Φ9.6*5mm
Description:
The electromagnetic buzzer generally consists of a plastic housing
with a metal diaphragm that is flexed by an electro- magnet. The
main benefit of this design is the ability to obtain low
frequencies in a small package. Drawbacks include mechanical wear,
electrical noise, lower sound output, and large power consumption.
Precautions for use:
• Do not apply DC bias to the buzzer; otherwise insulation
resistance may become low and affect the performance.
• Do not supply any voltage higher than applicable to the buzzer.
• Do not use the buzzer outdoors. It is designed for indoor use. If
the buzzer has to be used outdoors, provide it with waterproofing
measures; it will not operate normally if subjected to moisture.
• Do not wash the buzzer with solvent or allow gas to enter it
while washing; any solvent that enters it may stay inside a long
time and damage it.
• Do not apply any mechanical force to the buzzer; otherwise the
case may deform and result in improper operation.
• Do not place any shielding material or the like just in front of
the sound release hole of the buzzer; otherwise the sound pressure
may vary and result in unstable buzzer operation. Make sure that
the buzzer is not affected by a standing wave or the like.
• Be sure to solder the buzzer terminal at 350℃ max.(80W
max.)(soldering iron trip) within 5 seconds using a solder
containing silver.
• Avoid using the buzzer for a long time where any corrosive gas
(H2S, etc.) exists; otherwise the parts or sound generator may
corroded and result in improper operation.
• Be careful not to drop the buzzer.
Specifications:
| Type | Unit | 09605YT01 | 09605YT03 | 09605YT05 | 09605YT12 |
| Rated voltage | V | 1.5 | 3 | 5 | 12 |
| Operating voltage | V | 1.2-2.5 | 2-5 | 4-7 | 9-15 |
| Rated current | mA | ≤20 | ≤30 | ≤30 | ≤30 |
| Sound output at 10cm | dB | ≥80 | ≥82 | ≥85 | ≥85 |
| Resonant frequency | Hz | | 2700±300 |
| Operating temperature | ℃ | | -20~+70 |
| Storage temperature | ℃ | | -30~+80 |
| Weight | g | | 1 |
Application:
• Medical equipment: glucose meter for blood, temperature test
instrument, ECG monitor, fetal heart tester, blood glucose meter
• Home appliances: refrigerator, washing machine, computer, air
conditioner, telephone, microwave oven, oven, TV set, keychain
• Electronic products: mobile phone, remote control, anti-lost
device, POS machine, electronic toy, robot, watch, facial massager,
instruments and apparatuses, unmanned aerial vehicle
• Security equipment: warning lights, anti-theft electronic locks,
safety equipment and sirens/alarms/car alarm.
Dimension: (mm)
Tolerance: ±0.5
Frequency response:
