    Metallised Polyester Film Capacitor PET CL11

    Ask Lasest Price
    Brand Name : ANYO
    Model Number : CL11
    Price : Negotiation
    Supply Ability : 10000000pcs per day
    Delivery Time : 8-10 work days
    Payment Terms : L/C, T/T
    • Product Details
    • Company Profile

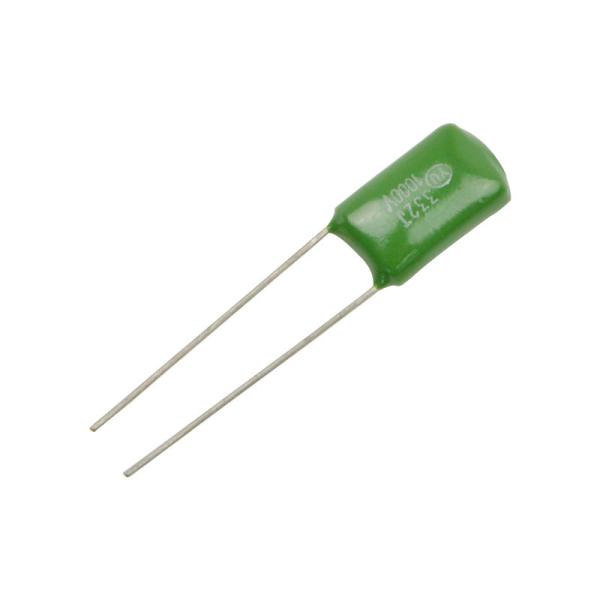

    Metallised Polyester Film Capacitor PET CL11

    Metallized polyester film capacitor PET CL11, Inductive type , 100V~1200V


    Description:

    Film capacitors are capacitors which use a thin plastic film as the dielectric. This film is made extremely thin using a sophisticated film drawing process. Once the film is manufactured, it may be metallized or left untreated, depending on the needed properties of the capacitor. Electrodes are then added and the assembly is mounted into a case which protects it from environmental factors. They are used in many applications because of their stability, low inductance and low cost. There are many types of film capacitors, including polyester film, metallized film, polypropylene film, PTFE film and polystyrene film. The core difference between these capacitor types is the material used as the dielectric, and the proper dielectric must be chosen according to the application.


    Features:

    • Polyester film, inductive, epoxy resin coating

    • Small size and light weight

    • Dissipation factor is small because the leads are directly welded to electrodes

    • High stability and reliability


    Construction:

    • Dielectric: Polyester film

    • Electrodes: Aluminum foil

    • Winding: Inductive type

    • Leads: Tinned wire

    • Outer coating: Flamme retarding epoxy resin


    Applications:

    Widely used in DC and pulsating circuits of radio, TV sets, ballast, energy-saving lamps, LED converter , and various electronic equipments, like splitter box.

    Using area: DC and low pulse circuit.e.g. low frequency filter, block DC and by-pass etc. Please do not use in the AC, filtering, Oscillation and high frequency circuits.


    The exchange of VAC and VDC:

    DC100VDC250VDC400VDC630VDC1000VDC
    AC63VAC160VAC200VAC220VAC250VAC

    Dimension list:(mm)

    R.V.50/100VDC200V/250VDC400VDC630VDC1000V/1200VDC
    SizeWHTPdWHTPdWHTPdWHTPdWHTPd
    Cap.(μF)MaxMaxMax±1±0.05MaxMaxMax±1±0.05MaxMaxMax±1±0.05MaxMaxMax±1±0.05MaxMaxMax±1±0.05
    0.001611440.5612440.5612440.5712440.5714540.5
    0.0012611440.5612440.5612440.5712440.5714540.5
    0.0015611440.5612440.5612440.5712440.57.514540.5
    0.0018611440.5612440.5612440.5712440.57.514540.5
    0.0022611440.5612440.5612440.5713540.5814540.5
    0.0027611440.5612440.5712440.5712440.5814640.5
    0.0033611440.5612440.5712440.5712440.5814640.5
    0.0039611440.5612440.5712440.5712440.5814640.5
    0.0047711440.5712440.5812540.5812640.5915640.5
    0.0056711440.5712440.5812540.5812640.51016750.5
    0.0068711440.5712440.5913540.5812650.51016760.5
    0.0082711440.5712440.5914540.5914650.51016860.5
    0.01711540.5712540.51015640.51017760.51117860.5
    0.012711540.5712540.51015640.51217860.51218960.5
    0.015811540.5812540.51115650.51217860.51218970.5
    0.018811540.5812540.51115750.51217960.5
    0.022811540.5812540.51216860.51317980.5
    0.027812550.5813550.51216960.514181080.5
    0.033812550.5813550.51216960.514181080.5
    0.039913550.5914550.513171070.5
    0.047913550.5914650.513171070.5
    0.0561013660.51014670.513171070.5
    0.0681013660.51014670.513181070.5
    0.0821113670.51114680.513181080.5
    0.11214770.515151080.514191080.5
    0.121214770.5
    0151215770.5
    0.181216870.5
    0.221216870.5
    0.271316970.5
    0.331417980.5
    0.391417980.5
    0.4715171080.5
