    Wire to board PCB connector XH type 2.50mm, harness wire connector

    Wire to board PCB connector XH type 2.50mm, harness wire connector


    Specification:

    Poles2~20P
    Current rating3A AC,DC
    Voltage raing250V AC,DC
    Temperature range-25℃~+85℃
    Contact resistance≤10mΩ
    Insulation resistance≥1000MΩ
    Withstand voltage1000VAC/minute
    Applicable wireAWG #30 to #22

    Performance test:

    ItemTest conditionRequirements
    1AppearanceVisual by eye
    Light: >1.0
    Lamp: 200~300Lx
    Space: 0.3~0.5m

    1. Plastic part:smooth and flat surface without discolor,broken,crack distortion defects is acceptable.

    2.Metal part:btight and even surface without rust,oxide,fog and obvious physical damage defects is acceptable.

    3.Wire:clearing surface without discolor,broken defects,indistinct words and mark is acceptable.

    2Contact resistanceMate connectors,measure by dry circuit.10mΩ MAX
    3InsuIation ResistanceApply 500V DC between adjacent terminal or ground.1000MΩ MIN
    4Dielectric StrengthMate connectors,apply 500V AC for 1 minute between adjacent terminal or ground.No Breakdown
    5Crimping Pull Out ForceFix the crimped terminal,apply axial pull out force on the wire at the speed rate of not more 25mm/min.AWG.22# 30N MIN
    AWG.24# 20N MIN
    AWG.26# 15N MIN
    AWG.28# 10N MIN
    AWG.30# 8N MIN
    6Terminal/Housing Retention ForceApply axial pull out force at the speed rate of not more 25mm/min on the pin assembled in the housing.15N MIN
    7Pin Retention ForceApply axial push out force at the speed rate of not more 25mm/minute on the terminal assembled in the base.10N MIN
    8SolderabilitySoldering time: 2±0.5 second Solder Temperature:240℃±5℃90% of immersed area must show no voids,pin holes
    9Resistance to Soldering HeatSoldering time: 2±0.5 second Solder Temperature:260℃AppearanceNo Damage
    10Heat ResistanceMated connectors are exposed to a temperature of 85℃±2℃ for 96 hours.Appearance
    LLCR
    No Damage
    20mΩ Max
    11Clod ResistanceMated connectors are exposed to a temperature of -25℃±2℃ for 96 hours.Appearance
    LLCR
    No Damage
    20mΩ Max
    12Temperature RiseCarring rated current load.Temperature Rise30℃ MAX
    13HumidityTemperature:40±2℃
    Relative Humidity:90%~95%
    Duration:96 hours
    AppearanceNo damage
    Dielectric strength1000VAC/minute

    Insulation Resistance

    LLCR

    1000MΩ MIN
    20mΩ MAX
    14Temperature cycleMated connectors are exposed to 5 cycles of:
    a)-25°C±2°C 0.5hour
    b)+85°C±2°C 0.5hour
    AppearanceNo damage
    Dielectric strength1000VAC/minute

    Insulation Resistance

    LLCR

    1000MΩ MIN
    20mΩ MAX
    15VibrationFrequency:10~55Hz
    Amplitude:±1.5mm
    Frequency:>55~500Hz
    Acceleration:50m/s2
    Duration:2 hours in each X,Y,Z axes
    AppearanceNo damage
    Contact resistance20mΩ MAX
    Intermittence1μsec MAX
    16Repeated insertion/ withdrawalWhen mated up to 50 cycles repeatedly by the rate of 10 cycles per minute.AppearanceNo damage
    Dielectric strength1000VAC/minute
    Insulation1000MΩ MIN
    Contact resistance20mΩ MAX
    17Salt spray16 hour exposure to a saltspray from the 5%±1 solution.Appearance:No Damage(No erosion with material exposed.And with plating material,slight erosion on the cutting surface acceptable)
    18Insertion and Withdrawal ForceInsertion and withdraw contact at the speed rate of 1mm/s~5mm/s.Insertion(Max)Withdrawal(Min)
    10N2.0N

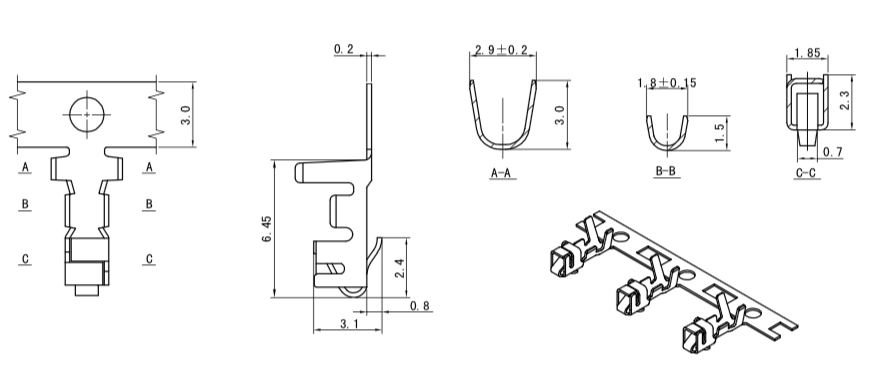

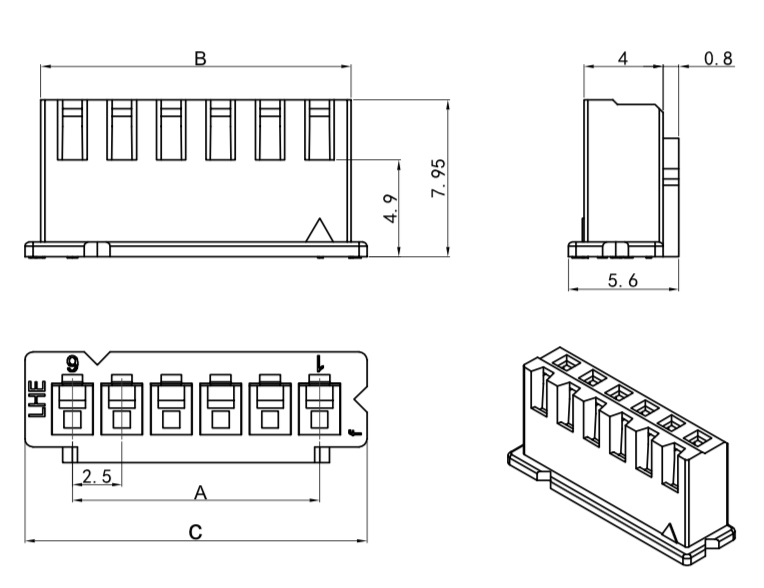

    Dimension: (mm)
