10mm (0.39 inch) Red Single Digit Common Anode 7 Segment Display

Description:

• The hyper red source color devices are made with AlGaInP on GaAs substrate Light Emitting Diode
• Electrostatic discharge and power surge could damage the LEDs
• It is recommended to use a wrist band or anti-electrostatic glove when handling the LEDs
• All devices, equipments and machineries must be electrically grounded

Application:

• Home and smart appliances
• Display time and digital combination
• Industrial and instrumental applications

• Numeric status

Features:

• 0.39 inch digit height
• Low current operation
• Excellent character appearance
• Easy mounting on P.C. boards or sockets

• Mechanically rugged
• Standard: gray face, white segment
• RoHS compliant

Selection guide:

Electrical / Optical characteristics at TA=25℃

Notes:
1. The dominant wavelength (λd) above is the setup value of the sorting machine. (Tolerance λd : ±1nm. )
2. Forward voltage: ±0.1V.
3. Wavelength value is traceable to CIE127-2007 standards.
4. Excess driving current and / or operating temperature higher than recommended conditions may result in severe light degradation or premature failure.

Absolute maximum ratings at TA=25℃

Notes:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
2. 2mm below package base.
3. Relative humidity levels maintained between 40% and 60% in production area are recommended to avoid the build-up of static electricity – Ref JEDEC/JESD625-A and JEDEC/J-STD-033.

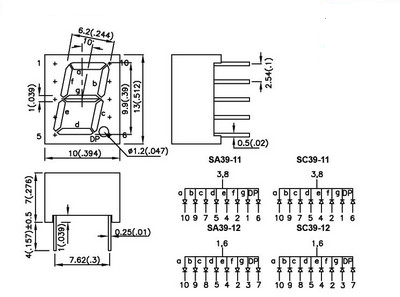

Dimension: (mm)

Notes:
1. All dimensions are in millimeters (inches), Tolerance is ±0.25(0.01") unless otherwise noted.
2. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice.
