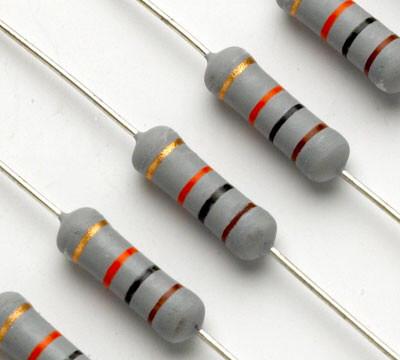

    DIP Type Metal Oxide Film Resistor With Temperature Coefficient ±250ppm/℃

    Ask Lasest Price
    Brand Name : ANYO
    Model Number : RY series
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 10000000pcs per day
    Delivery Time : 8-10 work days
    • Product Details
    • Company Profile

    DIP Type Metal Oxide Film Resistor With Temperature Coefficient ±250ppm/℃

    DIP Type Metal Oxide Film Resistor With Temperature Coefficient ±250ppm/℃


    Description:


    The metal oxide film resistor is a type of fixed resistor, which uses metal oxide film as the resistive element to limit the flow of electric current to certain level.


    The construction of metal oxide film resistor is almost similar to the metal film resistors. The main difference between the metal oxide film resistor and the metal film resistor is material used for constructing the film.

    In metal film resistor, the film is constructed by using the metals such as nickel chromium whereas in metal oxide film resistors, the film is constructed by using the metal oxide such as tin oxide.

    The metal oxide film resistor is made by coating the ceramic core with metal oxide such as tin oxide. The antimony oxide is added to the tin oxide to increase its resistivity. The resistivity of the metal oxide film is mainly depends on the amount of antimony oxide added to the tin oxide.


    Application:


    Many properties of metal oxide film resistors are similar to metal film resistors. For basic use, metal film and metal oxide film are currently the predominant resistor types. Compared to carbon film, the prices are just as low. Only for dissipation values above 1 watt combined with reasonable stability, the carbon film resistors are still more cost efficient.


    Characteristics:


    ItemsCapability demandTest method
    CB/T5729-94 IEC115-1
    Temperature cycle△R≤±(1%R+0.05Ω)4.19
    Max. Intermittence Overload Voltage△R≤±(1%R+0.05Ω)4.13
    Dielectric Withstanding Voltageno strike out or splash4.7
    Soldering heat-resistant△R≤±(1%R+0.05Ω)4.18
    Weather sequence△R≤±(5%R+0.1Ω)4.23
    Solderability95% coverage min.4.17
    Derivative end intensity△R≤±(1%R+0.05Ω)4.16
    Concussion△R≤±(1%R+0.05Ω)4.21
    Vibration△R≤±(1%R+0.05Ω)4.22
    Wear under room temperature△R≤±(5%R+0.1Ω)4.25

    Dimension:



    ItemsDimensions (mm)Power rating at 70℃Temp. CoefficientUtmost voltageDielectric Withstanding VoltageValue Range Ω
    LDL±3d±0.05(W)(10-6/℃)(V)(V)J(±5%)
    RY156.3±0.52.3±0.3280.550.5±2502504001~100K
    RY169.5±0.53.5±0.5270.551350600
    RY1711±14.5±0.50.72350600
    RY1816±15.5±0.50.83500700
    RYGX5W18±16.5±0.55500750
    RYG5W25±28.5±115500750
    RYG7W30±27500750

    Deration Curve:
