Brand Name : | FENFA |
Model Number : | F169 |
Price : | Negotiation |
Payment Terms : | L/C, T/T |
Supply Ability : | 100000 per day |
Delivery Time : | 8-10 work days |
XLR Female Receptacle With 1/4" Stereo Jack Horizontal Combo Connector
Description:
A combined XLR female 3-pin receptacle and 1/4" phone jack in one. This unique connector accepts balanced and line inputs or instrument inputs - all in one unit of panel space.
Features:
• Combined XLR receptacle and 1/4" phone jack
• Saves rack space by combining 2 connectors in one housing
• Balanced or line inputs in one XLR shell
• Very low conductor capacitance, therefore suitable for digital audio
Electrical:
Contact resistance | < 10 mΩ (XLR) |
Contact resistance | < 20 mΩ (jack & switching contacts) |
Dielectric strength | 1.5KVDC |
Insulation resistance | >10MΩ(initial) |
Rated current per contact | 7.5 A (XLR) |
Rated current per contact | 7.5A (Jack) |
Rated voltage | <50V |
Switching contacts | 3 |
Mechanical:
Insertion force | ≤ 25 N |
Withdrawal force | ≤ 25 N |
Lifetime | >1000 mating cycles |
Panel thickness | Max. 7mm 0.27" |
Mounting direction | Rear mounting |

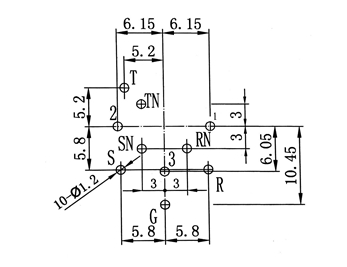

Dimension: (mm)
![]() |
