    PCB Mounted Small Electrical Connectors Card Edge Connector Solder Type

    Ask Lasest Price
    Brand Name : ANYO
    Model Number : AY1006
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 100000 per day
    Delivery Time : 8-10 work days
    • Product Details
    • Company Profile

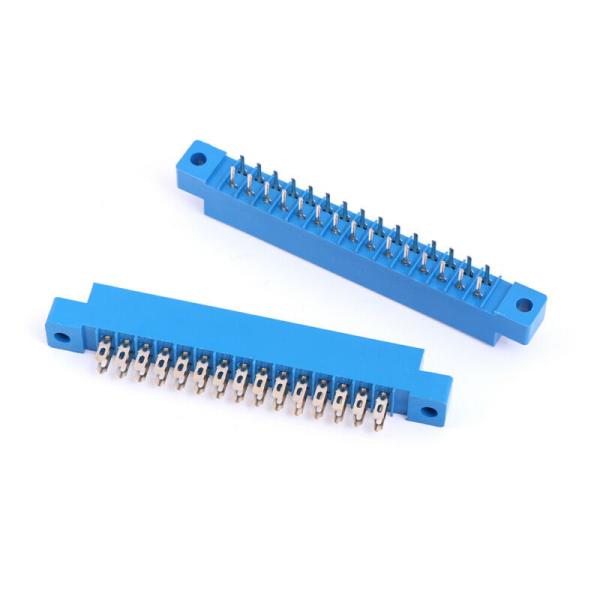

    PCB Mounted Small Electrical Connectors Card Edge Connector Solder Type

    3.96MM PCB Mounted Card Edge Connector Solder Type And DIP Type


    Description:


    Card edge connector is the portion of a printed circuit board (PCB) consisting of traces leading to the edge of the board that are intended to plug into a matching socket.


    Specification:


    Material

    Housing: 30% glass filled PBT UL94-0

    Contacts: Phosphor bronze

    Current rating5A
    Insulator resistance5000MΩ min. at DC500V
    Contact resistance20mΩ max. at DC100mA
    Temperature-55~105℃

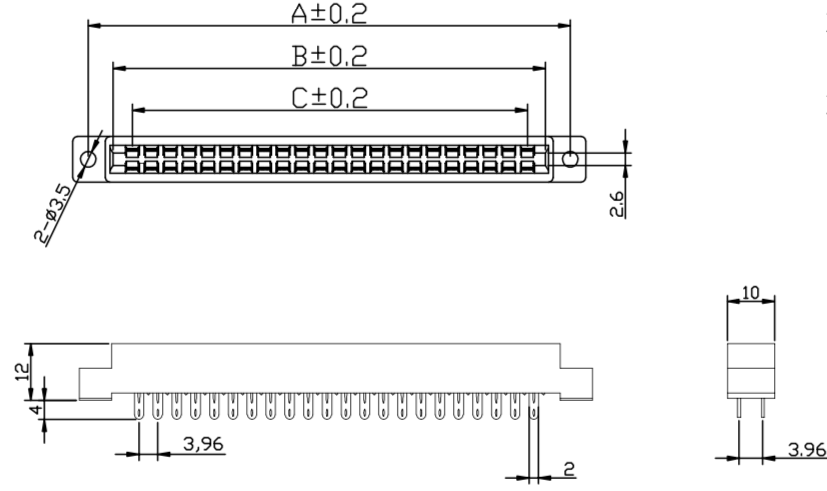

    Dimension: (mm)


    PositionABC
    830.3420.1811.88
    1238.2628.1019.80
    1646.1836.0227.72
    2054.1043.9435.64
    2462.0251.8643.56
    3073.9063.7455.44
    3685.7875.6267.32
    44101.6291.4683.16
    56125.38115.22106.92
    72157.06146.9138.60
