    2.54mm IC Test Socket / Zif Type Connector With Center Distance 7.62 / 15.24mm

    Ask Lasest Price
    Brand Name : ANYO
    Model Number : AY1001
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 100000 per day
    Delivery Time : 8-10 work days
    • Product Details
    • Company Profile

    2.54mm IC Test Socket / Zif Type Connector With Center Distance 7.62 / 15.24mm

    2.54mm IC Test Socket ZIF Socket Connector With Center Distance 7.62/15.24mm


    Description:


    Zero insertion force (ZIF) is a type of IC socket or electrical connector that requires very little force for insertion. With a ZIF socket, before the IC is inserted, a lever or slider on the side of the socket is moved, pushing all the sprung contacts apart so that the IC can be inserted with very little force - generally the weight of the IC itself is sufficient and no external downward force is required. The lever is then moved back, allowing the contacts to close and grip the pins of the IC. ZIF sockets are much more expensive than standard IC sockets and also tend to take up a larger board area due to the space taken up by the lever mechanism. Therefore they are only used when there is a good reason to do so.


    Specification:


    Material

    Housing: 30% glass filled PBT UL94-0

    Contacts: Phosphor bronze

    Plating: Gold plated 3u over 50u nickel

    Tin plated 100u over 50u nickel

    Current rating1A
    Insulator resistance5000MΩ min. at DC500V
    Contact resistance20mΩ max. at DC100mA
    Temperature-55~105℃

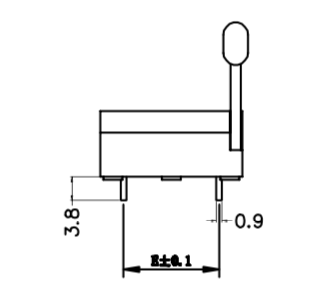

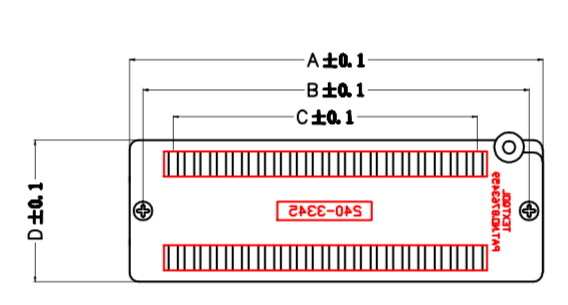

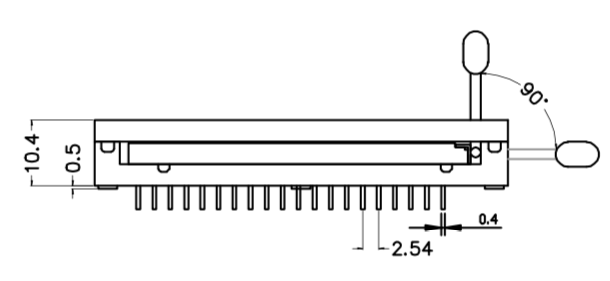

    Dimension: (mm)


    PositionABCDE
    14P33.229.215.2414.97.62
    16P353117.7814.97.62
    18P383420.3214.97.62
    20P40.836.822.8614.97.62
    24P W45.241.227.9422.615.24
    24P N45.841.827.9414.97.62
    28P W50.346.333.0222.615.24
    28P N50.346.333.0214.97.62
    32P55.351.338.122.615.24
    40P65.361.348.2622.615.24
    64P100.395.378.7432.322.86
