    High Precision 2.54mm Colorful Jumper Header Connectors Close Type Gold Plating

    Ask Lasest Price
    Brand Name : ANYO
    Model Number : AY1044-1B
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 100000 per day
    Delivery Time : 8-10 work days
    • Product Details
    • Company Profile

    High Precision 2.54mm Colorful Jumper Header Connectors Close Type Gold Plating

    2.54mm Colorful Mini Jumper Connector Close Type With Height 6.5mm


    Description:


    Mini jumper create an electrical connection between two pin headers.


    Material:


    InsulatorThermoplastic (UL94V-0)
    ContactCopper alloy
    Contact plated

    Full gold flash

    Nickel

    Gold+nickel


    Specification:


    Contact resistance30mΩ max.
    Dielectric withstanding voltage250V AC (rms) for 1 minute
    Insulation resistance500MΩ Min.
    Operating temperature-40~105℃

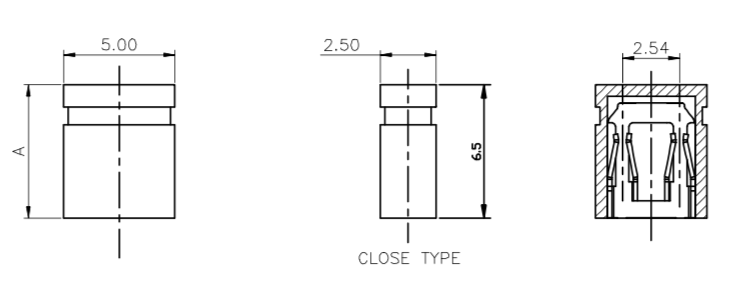

    Dimensions: (mm)
