    2 - 12P DIP Switch Pitch Piano Type With 2000 Cycles Electrical Life

    Ask Lasest Price
    Brand Name : ANYO
    Model Number : KF1002
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 50000pcs per day
    Delivery Time : 8-10 work days
    • Product Details
    • Company Profile

    2 - 12P DIP Switch Pitch Piano Type With 2000 Cycles Electrical Life

    2.54mm Pitch Piano Type DIP Switch, 2~12P With 2000 Cycles Electrical Life


    Mechanical:


    Operation force800g Max.
    Stroke1.90mm
    Temperature-40~105℃

    Material:


    BaseEngineering plastics, black
    CoverEngineering plastics, red or blue
    AcutatorEngineering plastic, white
    ContactCopper alloy, gold plating

    Electrical:


    Electrical life2000 cycles
    Contact resistance100mΩ Max.
    Insulation resistance1000MΩ at 500VDC
    Dielectric withstanding voltage500VAC per 1 minute
    CircuitSingle pole single throw

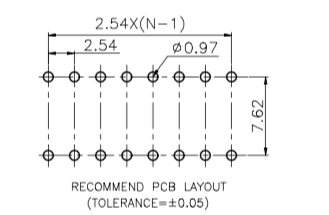

    Dimension:


    Quality 2 - 12P DIP Switch Pitch Piano Type With 2000 Cycles Electrical Life for sale
