FEATURES:
• Space Saving Size 1.3mm in height

• With stopper
• Easily adjusts with standard screwdriver.
• Metal-glaze resistance element gives excellent stability and protection against environmental factors.
• Can be mounted to a circuit board with adhesive.
• Designed for reflow soldering.
• Supplied in 8mm tape for automatic assembly equipment.
• Conform RoHS
• APPLICATIONS : Video equipment, industrial equipment and other general electronic equipment.

SPECIFICATIONS:

APPLICATIONS:

CAMERA built-in VCR, 8mm VCR, VCR camera, still camera, headphone stereos, LCD television, disk drive, bar code equipment, radar detectors, hand held equipments.

REFLOW SOLDERING REQUIREMENTS:

• Manual Soldering: In case of soldering by a soldering iron, it shall be finished within 3 seconds and the temperature of the tip of the soldering iron shall be 350℃ max.

• Flux Rinsing: After reflow soldering operation, part may be used without rinsing, if flux is well controlled. In case flux rinsing is done, flux shall be removed sufficiently.

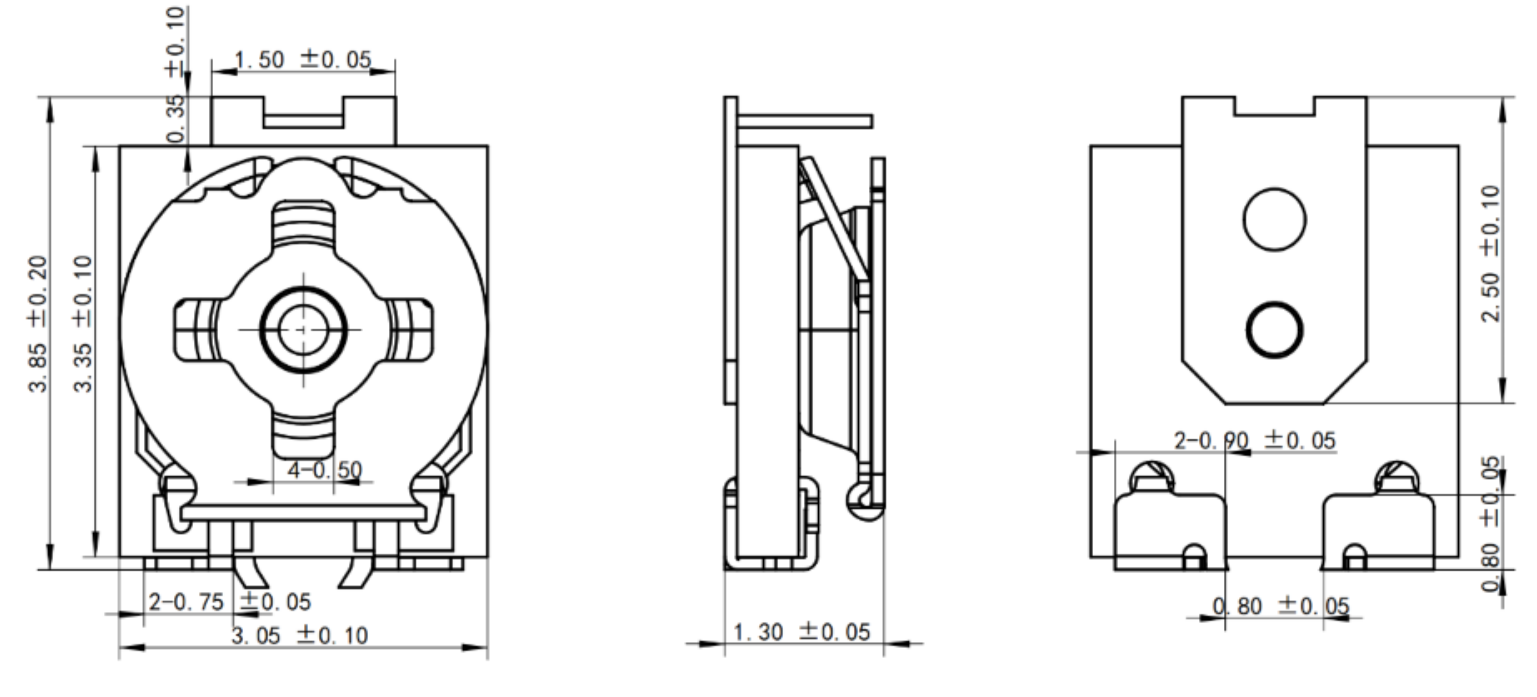

External dimensions:

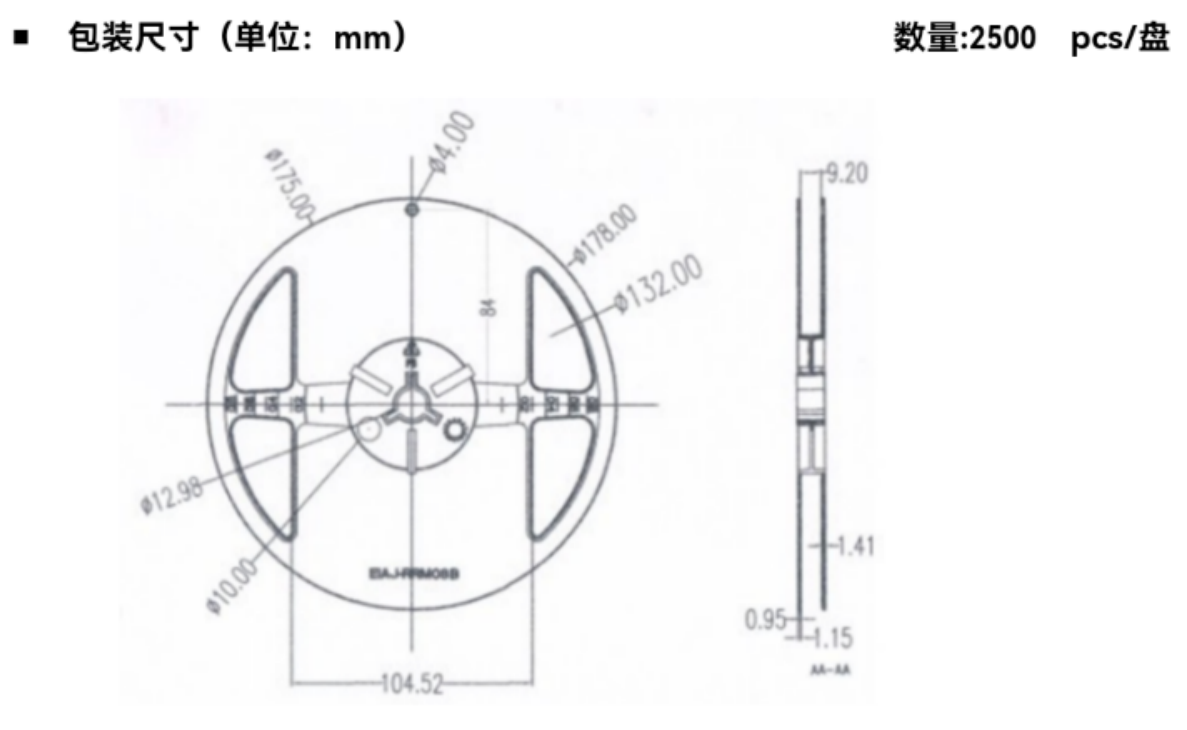

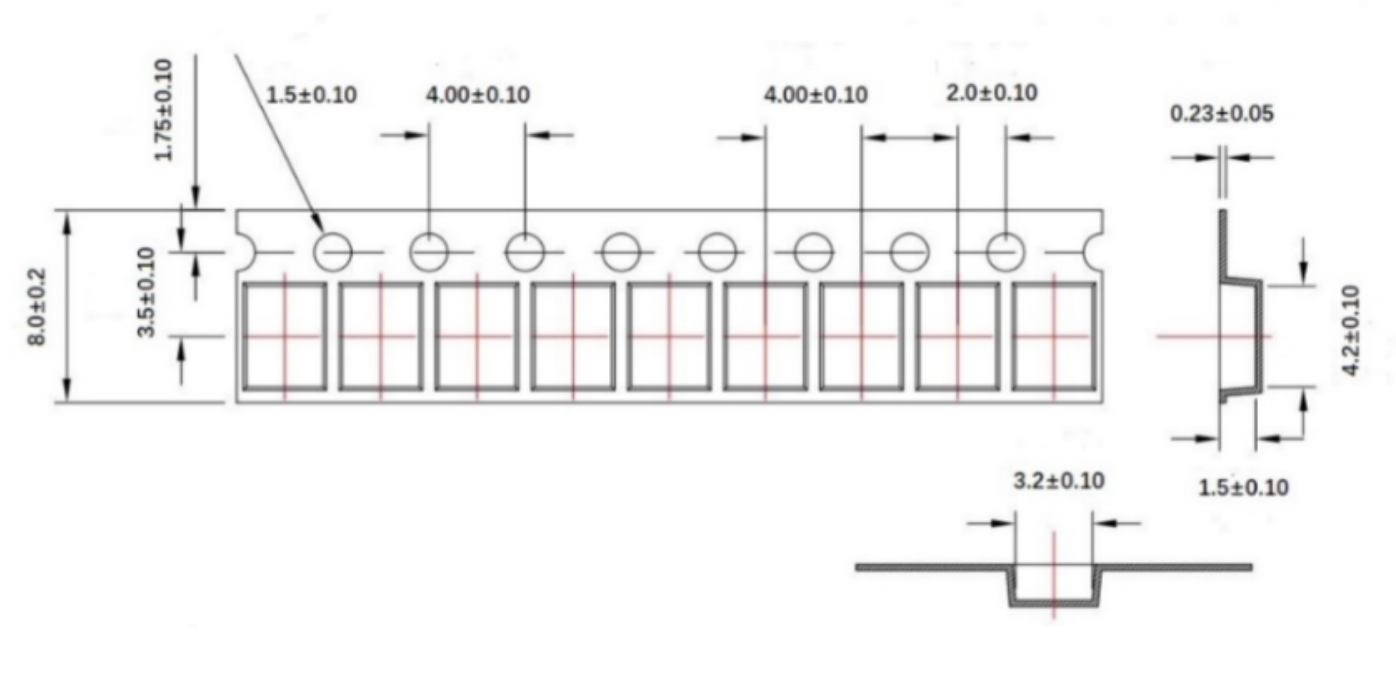

Packing specification:
